PART NO : ELCRL505RLEDB

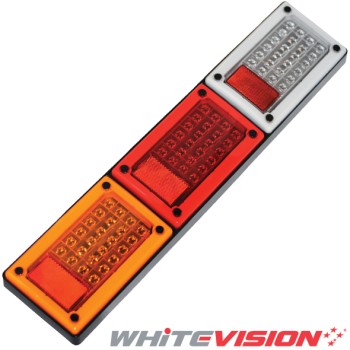

The Perei 505 Series Jumbo range of combination lamps offers superior quality, durability, and reliability. The triple module design includes a high-strength ABS base with stop/rear position and rear direction indicator and reverse functions with integrated reflectors. This series retains the legacy-coloured lens style for standard applications, while maintaining a visually modern look for vehicle applications.

Specifically built and designed for heavy-duty use, these lamps feature a high-heat and enhanced UV protective coating, ensuring exceptional durability in the harshest operating conditions. Fully ADR compliant, this series can be front or rear stud-mounted and is suitable for replacement, OE, caravan, and heavy vehicle applications.

FEATURES :

• High-strength ABS base
• stop/rear position and rear direction indicator and reverse functions with integrated reflector
• Legacy-coloured lens style with a modern look
• High-heat and UV protective coating
• Designed for heavy-duty applications
• Fully ADR compliant
• Suitable for front or rear stud mounting
• Ideal for replacement, OE, caravan, and heavy vehicle applications

SPECIFICATIONS :

• Functions: Stop / Rear Position / Direction Indicator / Reflector / Reverse
• Voltage: 9-33V DC Varivolt
• Wattage:
  Stop: 2.4W
  Rear Position: 0.4W/0.8W
  Indicator: 2.8
  Reverse: 2.4
• Mounting: Stud Mount
• Lens: Polycarbonate Lens
• Body: ABS/PC Body
• Environmental: IP67

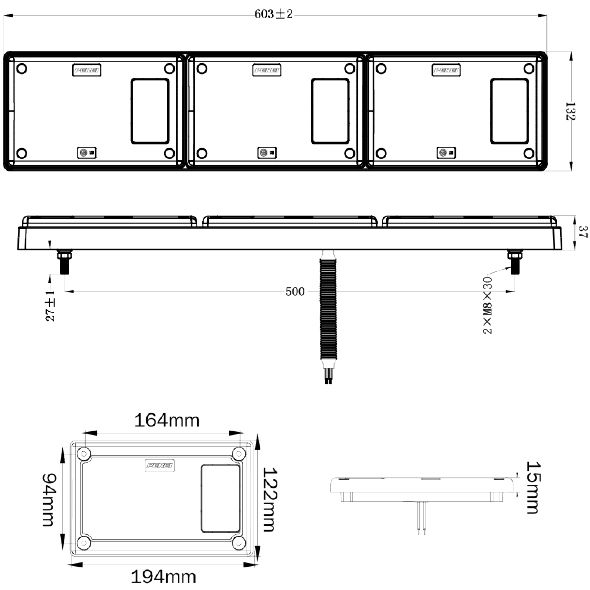

SIZE :
603mm (L) x 132mm (W)) x 37mm (D)

CRL505RLEDB​
